Cakupan WiFi 300Mbps 802.11 N Titik Akses Ceiling PoE / DC Power Supported
Rumah Produk802.11 N Access Point

Cakupan WiFi 300Mbps 802.11 N Titik Akses Ceiling PoE / DC Power Supported

Cakupan WiFi 300Mbps 802.11 N Titik Akses Ceiling PoE / DC Power Supported

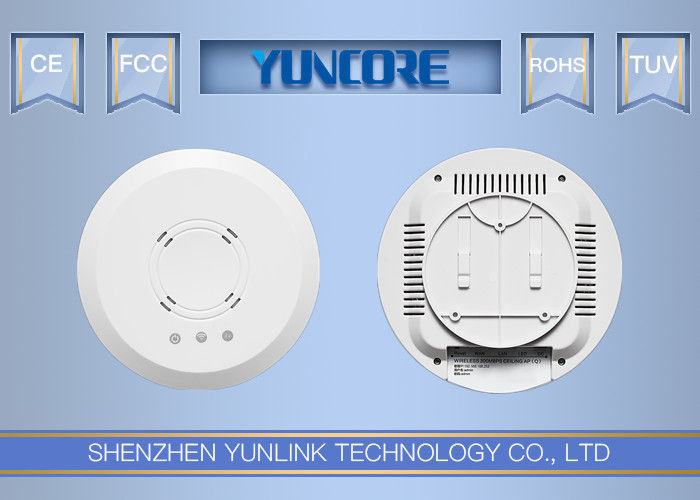

WiFi Coverage 300Mbps 802.11 N Access Point Ceiling PoE / DC Power Supported

Detail produk:

Tempat asal: Cina
Nama merek: Yuncore
Sertifikasi: CE,FEE,ROHS
Nomor model: XD9610Q / XD9600Q

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 100 pcs
Harga: Negotiable
Kemasan rincian: Kotak Giftbox + Carton
Waktu pengiriman: 4 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, Paypal
Menyediakan kemampuan: 1000pcs / minggu
Hubungi sekarang
Detil Deskripsi produk
Chipset: QCA531 Flash: 16M
RAM: 128M Standar: IEEE802.11N / G / B
Frekuensi: 2.4 GHz Antarmuka: 10 / 100M WAN * 1, 10 / 100M LAN * 1
Cahaya Tinggi:

access point repeater

,

802.11 n ap

802.1 N 300Mbps High Power High WiFi Cakupan Ceiling Design PoE / DC Power Supported


fitur


300Mbps High Data Rate, performa tinggi dan power RF yang dapat disesuaikan


Dilengkapi chipset Qualcomm berperforma tinggi, teknologi IEEE 802.11n 2T2R MIMO, kecepatan tinggi 300Mbps, memungkinkan semua perangkat yang terhubung untuk mencapai lebih cepat mengunggah / mendownload Ethernet. Dengan amplifier yang kuat, meningkatkan jangkauan WiFi untuk beberapa area dengan AP wireless berukuran kecil; Dapat mengurangi daya RF agar sesuai dengan area AP nirkabel kepadatan tinggi untuk menghindari gangguan WiFi.


Power over Ethernet (PoE)


Integrated Pasif Passive Power over Ethernet (PoE) 24V, bekerja dengan switch PoE atau adaptor PoE, bermain dan bermain, dipasang di area di mana gerai listrik tidak tersedia, sehingga menghilangkan kekacauan untuk mengubah infrastruktur jaringan yang ada.


Multiple Operation Mode untuk Multiple Application


Dukungan Wireless AP, Gateway, WiFi Repeater untuk memenuhi kebutuhan instalasi yang berbeda, seperti Gateway untuk keperluan rumah, WiFi Repeater untuk memperpanjang sinyal WiFi yang ada ke jangkauan yang lebih jauh.


Multi SSID, Tag VLAN, Manajemen Terpusat AC Controller, Server Cloud Captive Portal Authentication


Dukungan Multi SSID sampai dengan 4, masing-masing tag dukungan SSID VLAN untuk isolasi Pengguna. Bekerja dengan WLAN Controller, konfigurasi terpusat di alamat IP, SSID, Password, Tag VLAN, power RF adjustable, maka manajemen jarak jauh, mudah dijangkau WiFi Coverage and maintenance. Selain itu, akses ke server cloud untuk melakukan iklan dan Captive Portal authentication guest, untuk menciptakan nilai bisnis yang lebih.

Spec:

Spesifikasi

Perangkat keras
MCU Qualcomm QCA9531
RF 2T2R, teknologi MIMO 300Mbps, sesuai dengan standar IEEE 802.11b / g / n
Ingatan DDR RAM 128MB
Flash 16MB
Interface 2 x RJ-45 untuk port WAN / LAN 10/100 Mbps (port WAN mendukung IEEE 802.3af POE)
1 x tombol Reset (Reset & Factory Defaults)
1 x Power DC Jack

Kekuasaan

DC: 12V / 1A; 110V / 220V

XD9600Q: 24V Pasif PoE

XD9610Q: IEEE 802.3af 48V PoE

Antena Bangun antena Omni 5dbi 2PCS
Ukuran 168 * 35mm
RF
Frekuensi 802.11b / g / n, 533MHz
2.4 ~ 2.4835GHz
Produk AS, Eropa dan Jepang mencakup 2.400 sampai 2.4835 GHz, dapat diprogram untuk peraturan negara yang berbeda
Modulasi OFDM = BPSK, QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 300 Mbps
Kepekaan 802.11n (2.4GHz) 802.11g 802.11b
-90dBm @ MCS0 - 90dBm @ 6Mbps - 95dBm @ 1Mbps
-70dBm @ MCS7 - 72dBm @ 54Mbps - 90dBm @ 11Mbps
-90dBm @ MCS8
-68dBm @ MCS15
Output Power Radio1 (WLAN1)
802.11n (2.4GHz) (± 1.5dBm) 802.11g (± 1.5dBm) 802.11b (± 1.5dBm)
25dBm @ MCS0 ~ 2 / MCS8 ~ 10 25dBm @ 6 ~ 24Mbps 26dBm @ 1 ~ 11Mbps
25dBm @ MCS3 / MCS11 24dBm @ 36Mbps
24dBm @ MCS4 / MCS12 24dBm @ 48Mbps
24dBm @ MCS5 / MCS13 24dBm @ 54Mbps
24dBm @ MCS6 / MCS14
23dBm @ MCS7 / MCS15

Diagram Kerja:

Dual-Radio Dual-Radio High Power Cloud Server Manajemen Ceiling Wireless Access Point

Instalasi:

Dual-Radio Dual-Radio High Power Cloud Server Manajemen Ceiling Wireless Access Point
